PDC Anchor Bit

Place of Origin : China

Brand Name : EST

Certification : ISO9001

Model Number : All types

MOQ : 10pces

Price : USD$10-USD$55/pces FOB

Packaging Details : wooden case

Delivery Time : 3-15days

Payment Terms : TT、 L/C

Supply Ability : 50000pces/month

Contact Now

PDC anchor bit is mainly applied to drilling Anchor-network support hole in coal mine, therefore fast and high efficiency is guaranteed in cave excavating. And also used in water conservancy and hydropower.

Characteristics:

adopt new type superhard material-PDC cutters as main cutting tool, with much longer working life(10-30 times) than carbide bits.
Greatly improve drilling efficiency in medium and hard rock formation
Perfect stability in penetration and hole drilling, PDC is not easy to be collapsed.
Do not hole shrinkage and high successful hole rate. Therefore the rolled up powder and anchor could be greatly reduced
Reduce the labor intensity
Applicable rock formation: 4≤f≤12

Specifications:

2 wings or 3 wings; Dia.25mm to 45mm.

Ordinary type; Reinforced type; Super strength type

Diameter (mm)	Wings	PDC quantity(pcs)	Waterhole	Thread
25	2	2	1	M162 M141.5 M12*2 M12×1.75
26	2	2	1
27	2	2	1
28	2	2	1
29	2	2	1
30	2	2-3	1-3
32	2	2-3	1-3
36	2-3	2-3	1-3
42	2-3	3-4	1-3
45	2-3	3-4	1-3

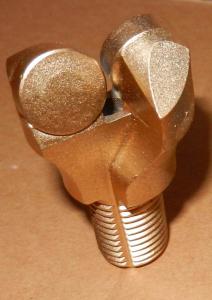

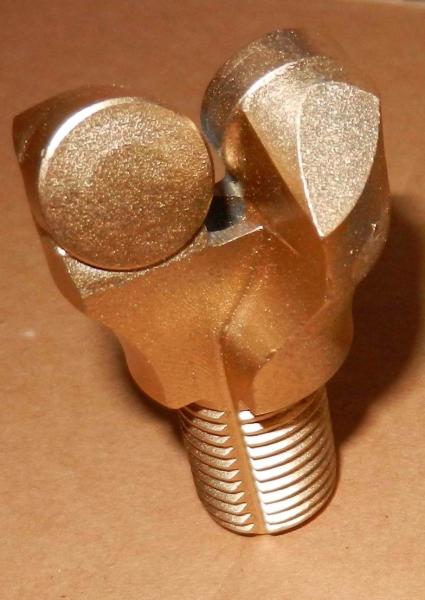

PDC Anchor Bit Images
